MANUAL PAD PRINTERS

A versatile bolt-on manual pad printer ideal for small series printing on electronic & promotional items such as pens, golf balls, lighters, knives, spectacles, drinking glasses & mugs, tools, etc.

Features:

• Easy to use manual pad printer
• Semi-automatic printing process
• All movements controlled by stops
• Simple adjustment of the pad holder in XYZ coordinates
• Easy exchange of the ink tray
• Adjustable table for securing the object to be printed
• Quick set-up time
• Simple cleaning

Technical date:

• Models available: HANDi-pad 80, HANDi-pad 130
• Cliché sizes: 80x100 mm, 130x100 mm
• Max printing diameter: 60 mm for the HANDi-pad 80
• Max printing diameter: 80 mm for the HANDi-pad 130
• Also available: HANDi-pad 130/2 colour option for printing hard to re-register items such as golf balls.
• Output: 400 – 600 cycles/hour
• Dimensions L/W/H: 500 x 200 x 200 mm

Weight: +- 8.5 kg

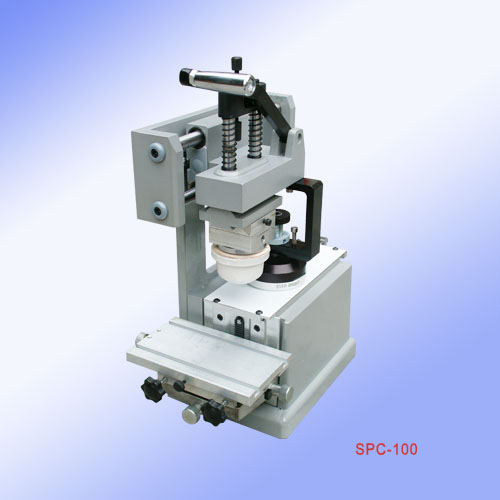

MANUAL 1-Colour PAD PRINTER

A versatile bolt-on manual pad printer ideal for small series printing on electronic & promotional items such as pens, golf balls, lighters, knives, spectacles, shot glasses, tools, etc.



Available in a Closed Cup or Open Ink Well system

Open Ink Tray: Cliché size - 100 x 100 mm
Closed Cup: 90 mm diameter

Maximum printing height: 80 mm

Weight: 27 kg
